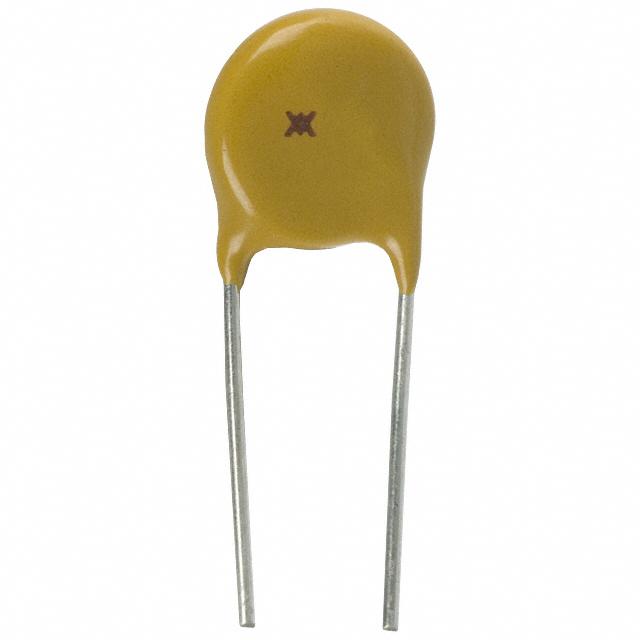

| Part Number | LVR008K | LVR008NK | LVR008S | LVR005K |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) |
| Current - Max | 1.2 A | 1.2 A | 1.2 A | 1 A |
| Current - Hold (Ih) (Max) | 80 mA | 80 mA | 80 mA | 50 mA |
| Current - Trip (It) | 190 mA | 190 mA | 190 mA | 120 mA |
| Time to Trip | 10 s | 10 s | 10 s | 10 s |
| Resistance - Initial (Ri) (Min) | 7.4 Ohms | 7.4 Ohms | 7.4 Ohms | 18.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 26 Ohms | 26 Ohms | 26 Ohms | 65 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.283" Dia x 0.181" T (7.20mm x 4.60mm) | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) |
| Height - Seated (Max) | 0.508" (12.90mm) | 0.488" (12.40mm) | 0.430" (10.70mm) | 0.508" (12.90mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
