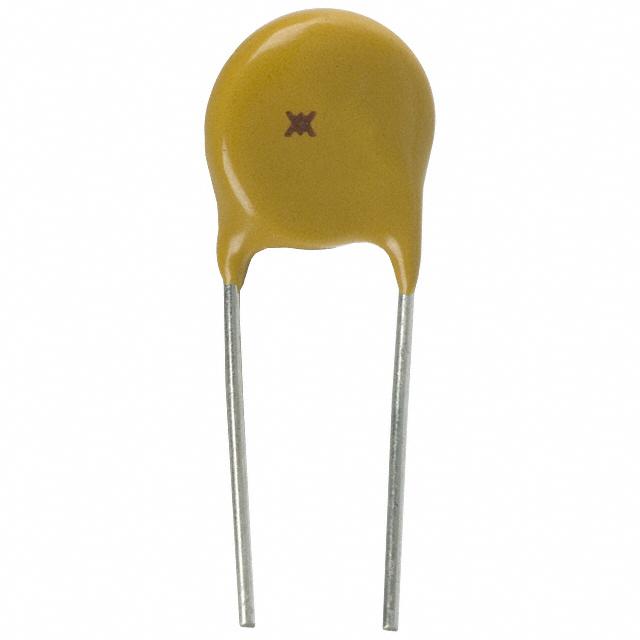

| Part Number | LVR005S | LVR025S | LVR055S | LVR008S | LVR075S | LVR005K | LVR005NS |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) | 240V (265V Int) |
| Current - Max | 1 A | 3.5 A | 7 A | 1.2 A | 7.5 A | 1 A | 1 A |
| Current - Hold (Ih) (Max) | 50 mA | 250 mA | 550 mA | 80 mA | 750 mA | 50 mA | 50 mA |
| Current - Trip (It) | 120 mA | 560 mA | 1.25 A | 190 mA | 1.5 A | 120 mA | 120 mA |
| Time to Trip | 10 s | 18.5 s | 26 s | 10 s | 18 s | 10 s | 10 s |
| Resistance - Initial (Ri) (Min) | 18.5 Ohms | 1.3 Ohms | 450 mOhms | 7.4 Ohms | 316 mOhms | 18.5 Ohms | 18.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 65 Ohms | 3.8 Ohms | 1.45 Ohms | 26 Ohms | 839 mOhms | 65 Ohms | 65 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Ratings | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.450" L x 0.189" W (11.43mm x 4.80mm) | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.272" Dia x 0.181" T (6.90mm x 4.60mm) |
| Height - Seated (Max) | 0.430" (10.70mm) | 0.685" (17.40mm) | 0.854" (21.70mm) | 0.430" (10.70mm) | 0.921" (23.40mm) | 0.508" (12.90mm) | 0.390" (9.90mm) |
| Thickness (Max) | - | - | - | - | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
