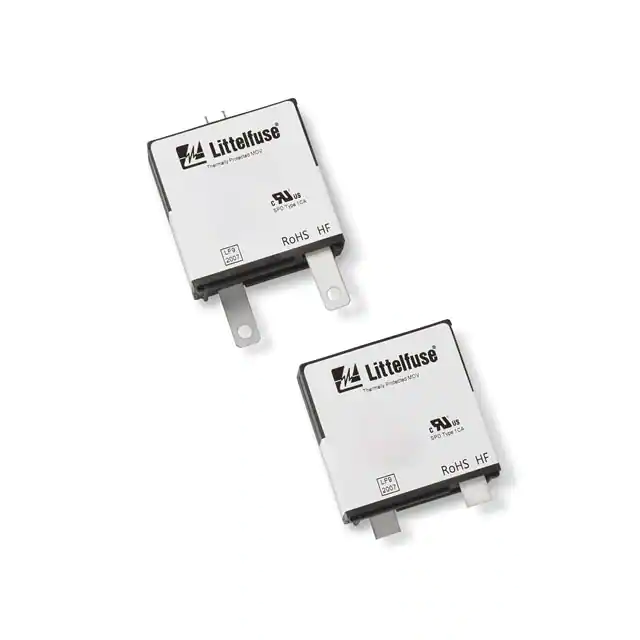

| Part Number | LST1507VL2NT1 | LST5507VL2NT1 | LST1807VL2NT1 | LST1505VL2NT1 |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Type 1, Type 2, Type 4 | Type 1, Type 2, Type 4 | Type 1, Type 2, Type 4 | Type 1, Type 2, Type 4 |
| Form | Module Only | Module Only | Module Only | Module Only |
| Number of Poles | 1 | 1 | 1 | 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 150VAC | 550VAC | 180VAC | 150VAC |
| Current - Discharge (Nom) (8/20µS) | 20 kA | 20 kA | 20 kA | 20 kA |
| Current - Discharge (Max) (8/20µS) | - | - | - | - |
| Current - Short Circuit Rating (SCRR) | 200 kA | 200 kA | 200 kA | 200 kA |
| Voltage - Protection Rating (VPR) | 600 V | 1.5 kV | 800 V | 600 V |
| Voltage - Protection Level (VP) (2416) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Features | Thermally Protected | Thermally Protected | Thermally Protected | Thermally Protected |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Approval Agency | UL | UL | UL | UL |
