Please send RFQ , we will respond immediately.

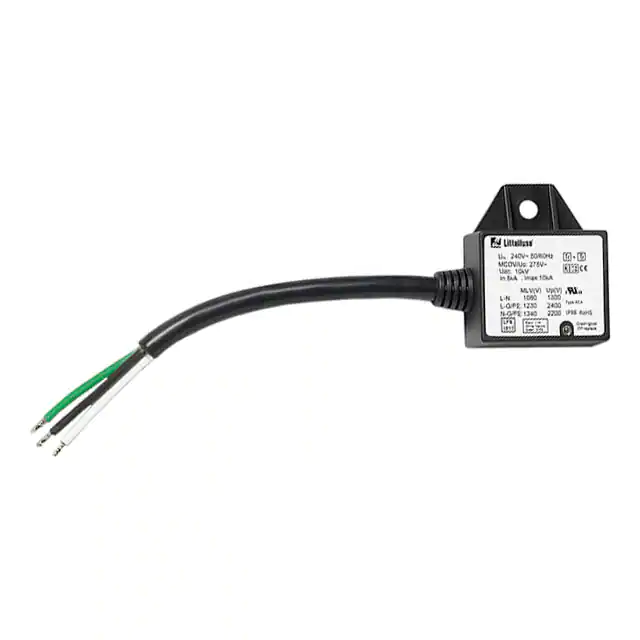

| Part Number | LSP05GI240PH | LSP05GI240SH | LSP05GI240P |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Type 2, Type 3 | Type 2, Type 3 | Type 2, Type 3 |
| Form | Module Only | Module Only | Module Only |
| Number of Poles | 1 | 1 | 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 275VAC | 275VAC | 275VAC |
| Current - Discharge (Nom) (8/20µS) | 5 kA | 5 kA | 5 kA |
| Current - Discharge (Max) (8/20µS) | 10 kA | 10 kA | 10 kA |
| Current - Short Circuit Rating (SCRR) | - | - | - |
| Voltage - Protection Rating (VPR) | - | - | - |
| Voltage - Protection Level (VP) (2416) | 2.4 kV | 2.4 kV | 2.4 kV |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Features | Thermally Protected | Thermally Protected | Thermally Protected |
| Mounting Type | Screw | Screw | Screw |
| Approval Agency | CE, cURus, KEMA-KEUR, UL | CE, cURus, KEMA-KEUR, UL | CE, cURus, KEMA-KEUR, UL |
