| Part Number | LSIC2SD120E10CC | LSIC2SD120E15CC | LSIC2SD120E20CC | LSIC2SD120E30CC | LSIC2SD120E40CC |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 17.5A (DC) | 24.5A (DC) | 28A (DC) | 44A (DC) | 54.5A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 5 A | 1.8 V @ 8 A | 1.8 V @ 10 A | 1.8 V @ 15 A | 1.8 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V | 100 µA @ 1200 V | 100 µA @ 1200 V | 100 µA @ 1200 V | 100 µA @ 1200 V |
| Capacitance @ Vr, F | 310pF @ 1V, 1MHz | 454pF @ 1V, 1MHz | 582pF @ 1V, 1MHz | 920pF @ 1V, 1MHz | 1142pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

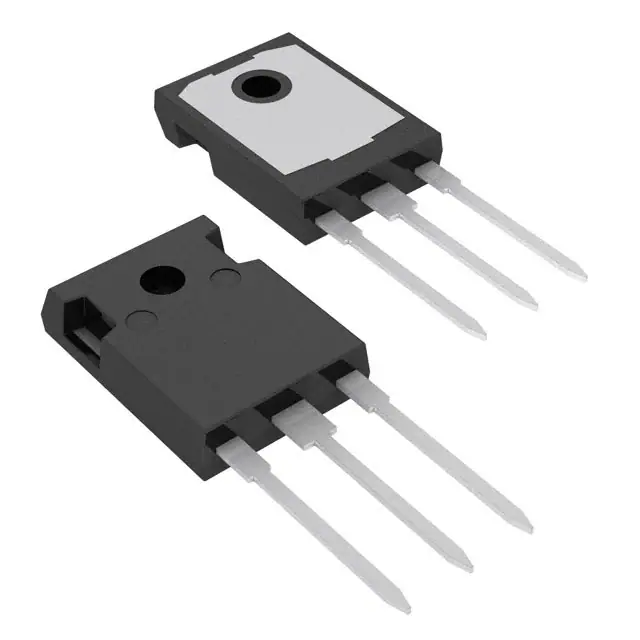

| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AD | TO-247AD | TO-247AD | TO-247AD | TO-247AD |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
