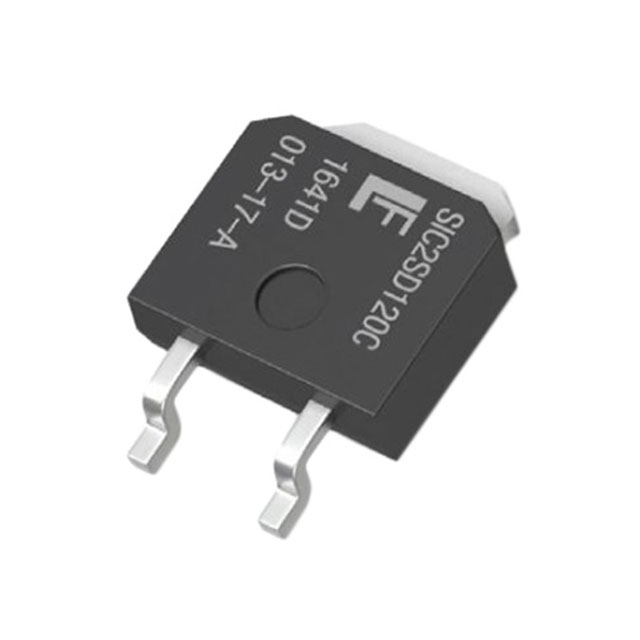

| Part Number | LSIC2SD120C08 | LSIC2SD120A08 | LSIC2SD120C05 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 24.5A (DC) | 24.5A (DC) | 18.1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 8 A | 1.8 V @ 8 A | 1.8 V @ 5 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V | 100 µA @ 1200 V | 100 µA @ 1200 V |
| Capacitance @ Vr, F | 454pF @ 1V, 1MHz | 454pF @ 1V, 1MHz | 310pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-220-2 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252, (D-Pak) | TO-220AC | TO-252, (D-Pak) |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
