| Part Number | LSIC2SD065E20CCA | LSIC2SD065E40CCA |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V |
| Current - Average Rectified (Io) | 27A (DC) | 45A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 10 A | 1.8 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 650 V | 50 µA @ 650 V |
| Capacitance @ Vr, F | 470pF @ 1V, 1MHz | 960pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Through Hole |

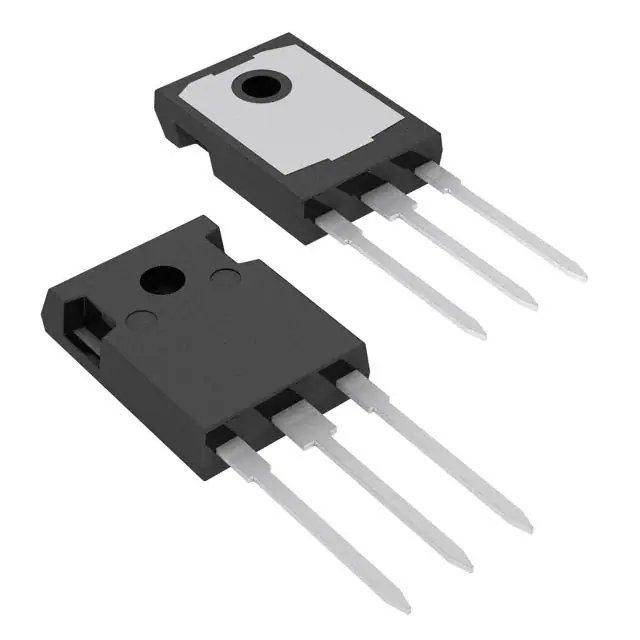

| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AD | TO-247AD |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C |
