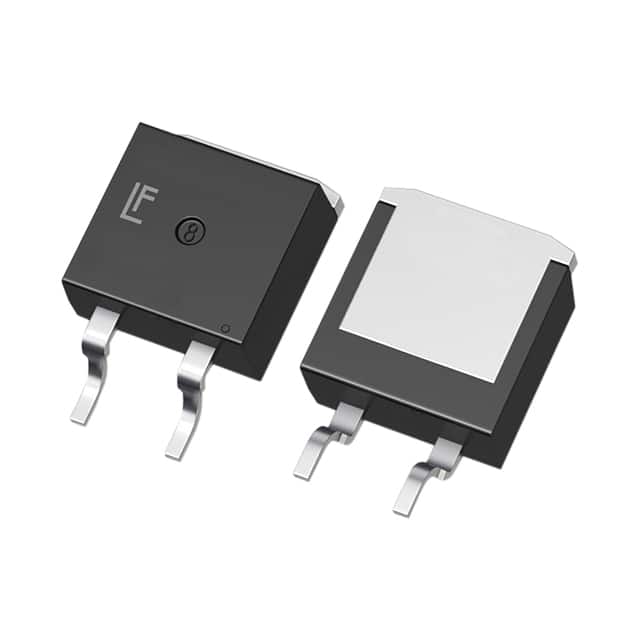

| Part Number | LSIC2SD065D16A | LSIC2SD065A16A | LSIC2SD065C16A | LSIC2SD065D06A | LSIC2SD065D10A |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 38A (DC) | 38A (DC) | 38A (DC) | 18.5A (DC) | 27A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 16 A | 1.8 V @ 16 A | 1.8 V @ 16 A | 1.8 V @ 6 A | 1.8 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 650 V | 50 µA @ 650 V | 50 µA @ 650 V | 50 µA @ 650 V | 50 µA @ 650 V |
| Capacitance @ Vr, F | 730pF @ 1V, 1MHz | 730pF @ 1V, 1MHz | 730pF @ 1V, 1MHz | 300pF @ 1V, 1MHz | 470pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-2 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D²Pak) | TO-220-2L | TO-252, (D-Pak) | TO-263 (D²Pak) | TO-263 (D²Pak) |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
