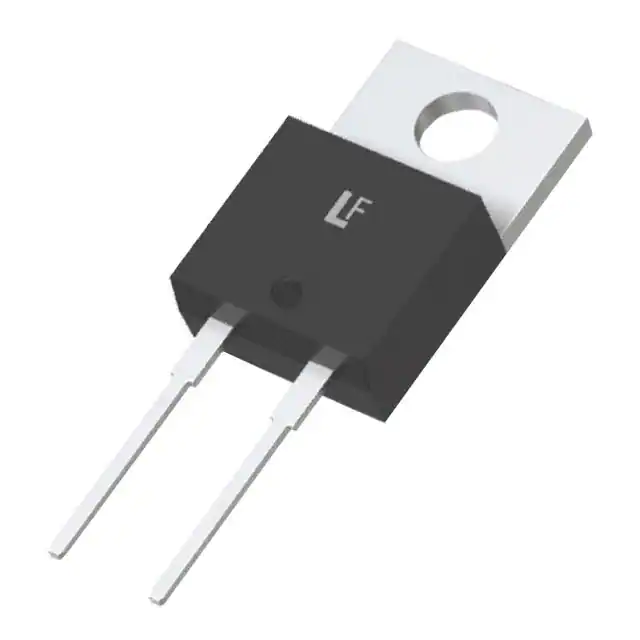

| Part Number | LSIC2SD065A08A | LSIC2SD065C08A | LSIC2SD065A06A |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete | Active |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 23A (DC) | 23A (DC) | 18.5A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 8 A | 1.8 V @ 8 A | 1.8 V @ 6 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 650 V | 50 µA @ 650 V | 50 µA @ 650 V |
| Capacitance @ Vr, F | 415pF @ 1V, 1MHz | 415pF @ 1V, 1MHz | 300pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | TO-220-2 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-220-2 |
| Supplier Device Package | TO-220-2L | TO-252, (D-Pak) | TO-220-2L |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
