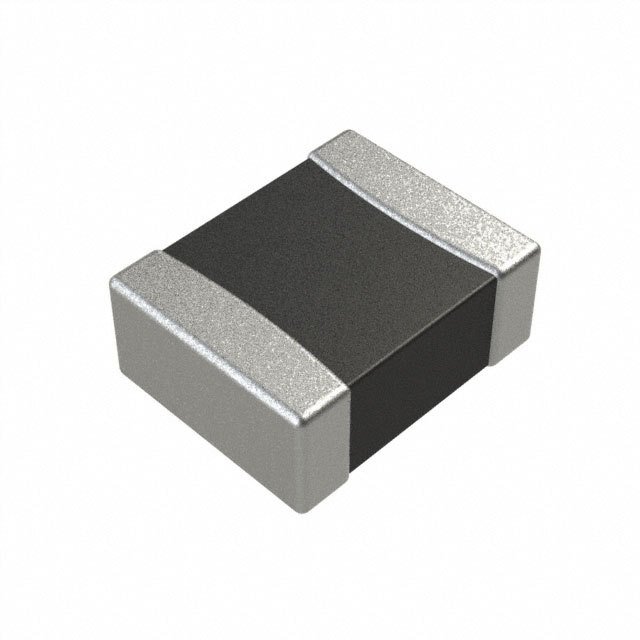

| Part Number | LPWI201610SR47T | LPWI201610TR47T | LPWI201210SR47T | LPWI201610BR47T | LPWI201610HR47T |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active |
| Type | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 470 nH | 470 nH | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.8 A | 3.6 A | 4 A | 4.8 A | 4.2 A |
| Current - Saturation (Isat) | 4A | 4.8A | 4.5A | 5.7A | 4.8A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 40mOhm Max | 25mOhm Max | 33mOhm Max | 27mOhm Max | 25mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) | 0805 (2012 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) | 0806 | 0805 | 0806 | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
