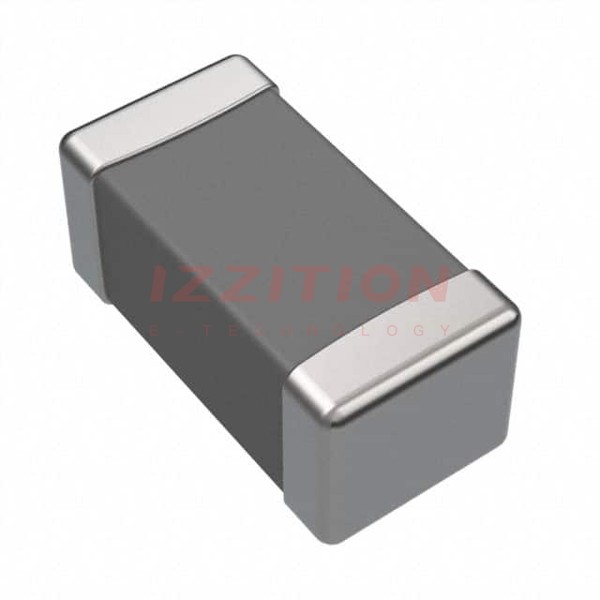

| Part Number | LPWI160808H1R0T | LPWI160808S1R0T |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete |
| Type | Thin Film | Thin Film |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.7 A | 1.7 A |
| Current - Saturation (Isat) | 2A | 1.7A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 135mOhm Max | 150mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) |
