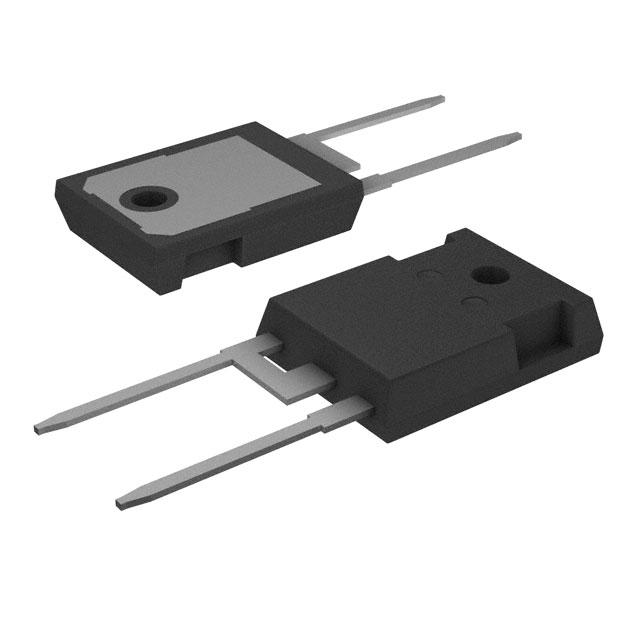

| Part Number | LFUSCD30120B | LFUSCD20120B |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 15A (DC) | 10A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 15 A | 1.7 V @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 375 µA @ 1200 V | 250 µA @ 1200 V |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AD | TO-247AD |
