Please send RFQ , we will respond immediately.

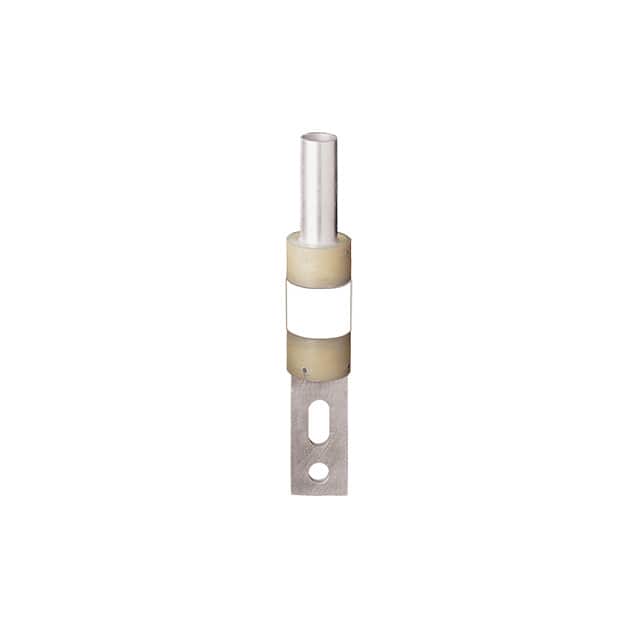

| Part Number | LFCL04/0ZC1 | LFCL04/0ZC6 | LFCL04/0ZC3 | LFCL04/0ZC5 | LFCL01/0ZC1 | LFCL02/0ZC1 | LFCL03/0ZC1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Bolt Mount | Free Hanging (In-Line) | Holder | Free Hanging (In-Line) |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cable Limiter | Cartridge | Cable Limiter |
| Current Rating (Amps) | - | - | - | - | - | - | - |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | - | - | - | - | - | - | - |
| Response Time | - | - | - | - | Fast Blow | Fast Blow | Fast Blow |
| Applications | Cable Protection | Cable Protection | Cable Protection | Cable Protection | Cable Protection | Cable Protection | Cable Protection |
| Features | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - |
| Approval Agency | - | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA | 200kA | 200kA | 200kA | 200kA | 200kA | 200kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cylindrical, Blade Terminal (Bolt) | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | - | - | - | - | 1.252" Dia x 2.626" L (31.80mm x 66.70mm) | 1.252" Dia x 2.626" L (31.80mm x 66.70mm) | 1.437" Dia x 3.626" L (36.50mm x 92.10mm) |
