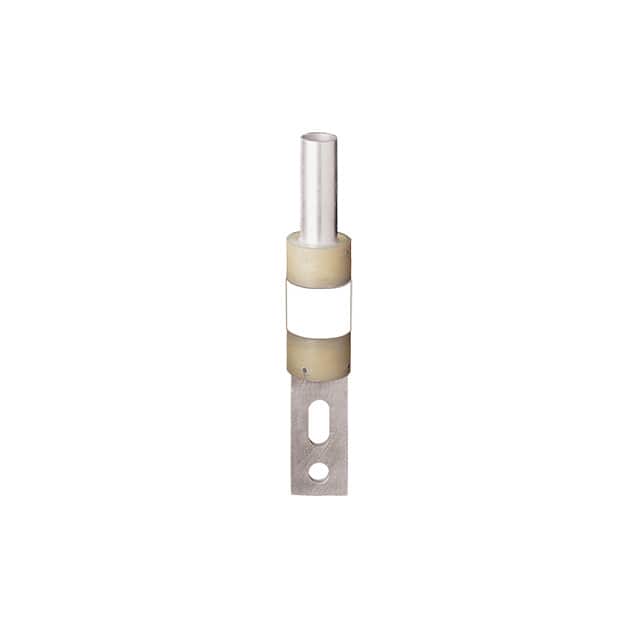

| Part Number | LFCL0002ZC3 | LFCL0012ZC3 | LFCL0004ZC3 | LFCL0006ZC3 | LFCL0001ZC3 | LFCL0002ZC1 |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fuse Type | Cable Limiter | Cable Limiter | Cable Limiter | Cable Limiter | Cable Limiter | Cable Limiter |
| Current Rating (Amps) | - | - | - | - | - | - |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | - | - | - | - | - | - |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Cable Protection | Cable Protection | Cable Protection | Cable Protection | Cable Protection | Cable Protection |
| Features | - | - | - | - | - | - |
| Class | - | - | - | - | - | - |
| Approval Agency | - | - | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA | 200kA | 200kA | 200kA | 200kA | 200kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 1.063" Dia x 2.874" L (27.00mm x 73.00mm) | 1.063" Dia x 2.874" L (27.00mm x 73.00mm) | 1.063" Dia x 2.874" L (27.00mm x 73.00mm) | 1.063" Dia x 2.874" L (27.00mm x 73.00mm) | 1.063" Dia x 2.874" L (27.00mm x 73.00mm) | 1.063" Dia x 2.874" L (27.00mm x 73.00mm) |
