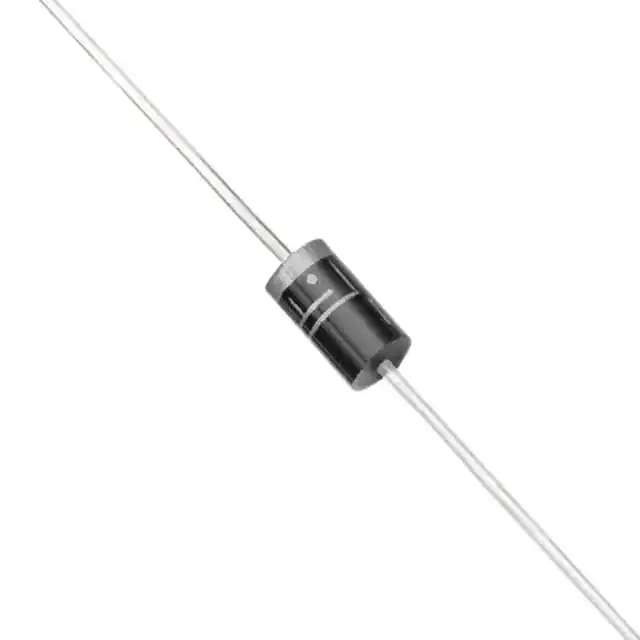

| Part Number | LCE20A | LCE40A | LCE22A | LCE28A | LCE24A | LCE26A | LCE30A | LCE60A | LCE70A | LCE90A | LCE10A | LCE20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 40V | 22V | 28V | 24V | 26V | 30V | 60V | 70V | 90V | 10V | 20V |
| Voltage - Breakdown (Min) | 22.2V | 44.4V | 24.4V | 31.1V | 26.7V | 28.9V | 33.3V | 66.7V | 77.8V | 100V | 11.1V | 21.02V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 64.5V | 35.5V | 45.5V | 38.9V | 42.1V | 48.4V | 96.8V | 113V | 146V | 17V | 34.02V |
| Current - Peak Pulse (10/1000µs) | 46A | 23.3A | 42A | 33A | 39A | 36A | 31A | 15.5A | 13.3A | 10.3A | 88A | 46A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 |
