Please send RFQ , we will respond immediately.

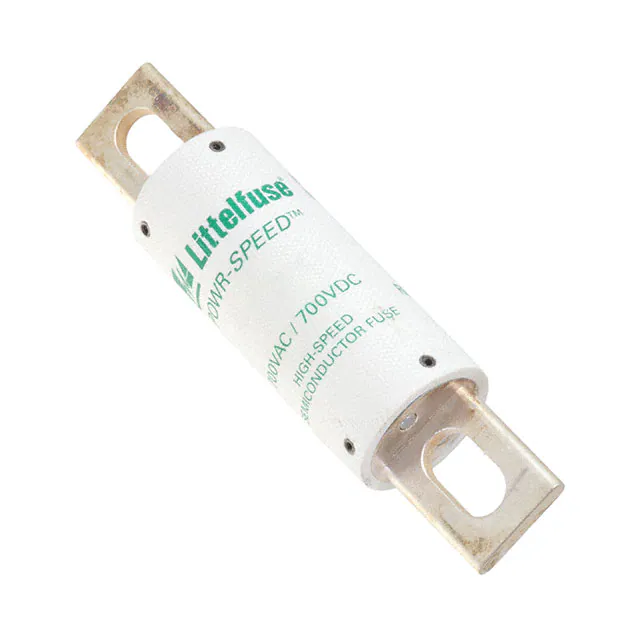

| Part Number | L70QS080.V | L70QS090.V | L70S080.V | L70QS040.V | L70QS050.V | L70QS060.V | L70QS070.V |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 80A | 90A | 80A | 40A | 50A | 60A | 70A |
| Voltage Rating - AC | 700 V | 700 V | 700 V | 700 V | 700 V | 700 V | 700 V |
| Voltage Rating - DC | 700 V | 700 V | 650 V | 700 V | 700 V | 700 V | 700 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - |
| Approval Agency | CE, cURus | CE, cURus, UR | CE, CSA, UR | CE, cURus, UR | CE, cURus, UR | CE, cURus, UR | CE, cURus, UR |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 200kA AC, 50kA DC | 200kA AC, 50kA DC | 200kA AC, 20kA DC | 200kA AC, 50kA DC | 200kA AC, 50kA DC | 200kA AC, 50kA DC | 200kA AC, 50kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | 1.220" Dia x 2.874" L (31.00mm x 73.00mm) | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) |
