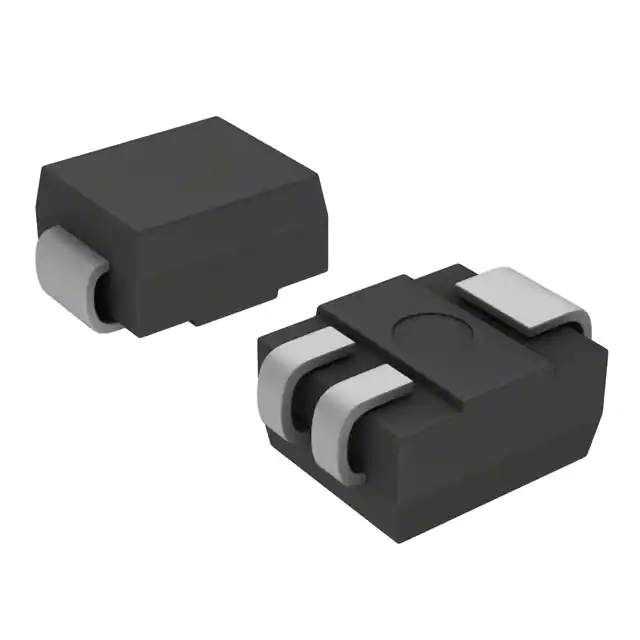

| Part Number | L6N5RP | L6X5RP | L6N3RP |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Triac Type | Logic - Sensitive Gate | Logic - Sensitive Gate | Logic - Sensitive Gate |
| Voltage - Off State | 600 V | 600 V | 600 V |
| Current - On State (It (RMS)) (Max) | 1 A | 800 mA | 1 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16.7A, 20A | 8.3A, 10A | 16.7A, 20A |
| Current - Gate Trigger (Igt) (Max) | 5 mA | 5 mA | 3 mA |
| Current - Hold (Ih) (Max) | 10 mA | 10 mA | 5 mA |
| Configuration | Single | Single | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 110°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak | DO-214AA, SMB (3 Leads), Compak |
| Supplier Device Package | Compak | DO-214 3L | DO-214 3L |
