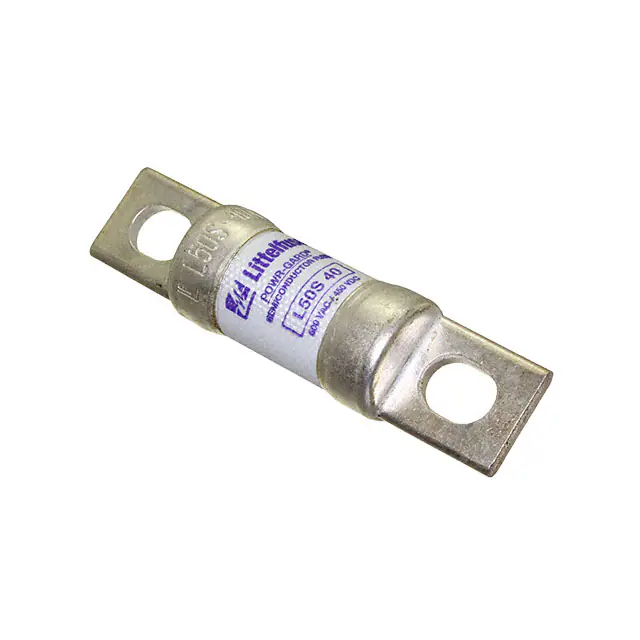

| Part Number | L50S015.T | L50S025.T | L70S015.T | L50S035.T | L50S010.T | L50S012.T |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Bolt Mount | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 15A | 25A | 15A | 35A | 10A | 12A |
| Voltage Rating - AC | 500 V | 500 V | 700 V | 500 V | 500 V | 500 V |
| Voltage Rating - DC | 450 V | 450 V | 650 V | 450 V | 450 V | 450 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - | - | - | - |
| Class | - | - | - | - | - | - |
| Approval Agency | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cylindrical, Blade Terminal (Bolt) | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) |
