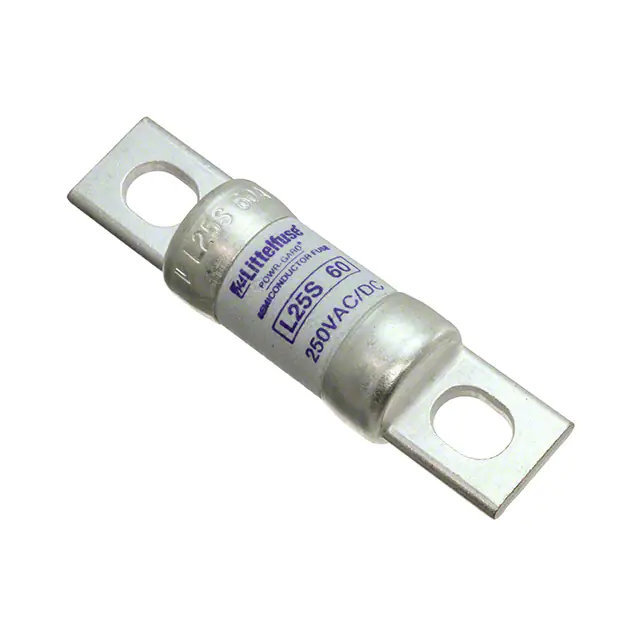

| Part Number | L25S500.V | L25S600.V | L25S700.V | L25S800.V | L15S500.V | L25S100.V | L25S200.V | L25S300.V | L25S400.V |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 500A | 600A | 700A | 800A | 500A | 100A | 200A | 300A | 400A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 250 V | 150 V | 250 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | 200 V | 200 V | 200 V | 200 V | 100 V | 250 V | 250 V | 200 V | 200 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - |
| Approval Agency | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR |
| Operating Temperature | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 100kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.500" Dia x 1.594" L (38.10mm x 40.50mm) | 1.500" Dia x 1.594" L (38.10mm x 40.50mm) | 1.500" Dia x 1.594" L (38.10mm x 40.50mm) | 2.000" Dia x 1.594" L (50.80mm x 40.50mm) | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) | 1.500" Dia x 1.594" L (38.10mm x 40.50mm) | 1.500" Dia x 1.594" L (38.10mm x 40.50mm) |
