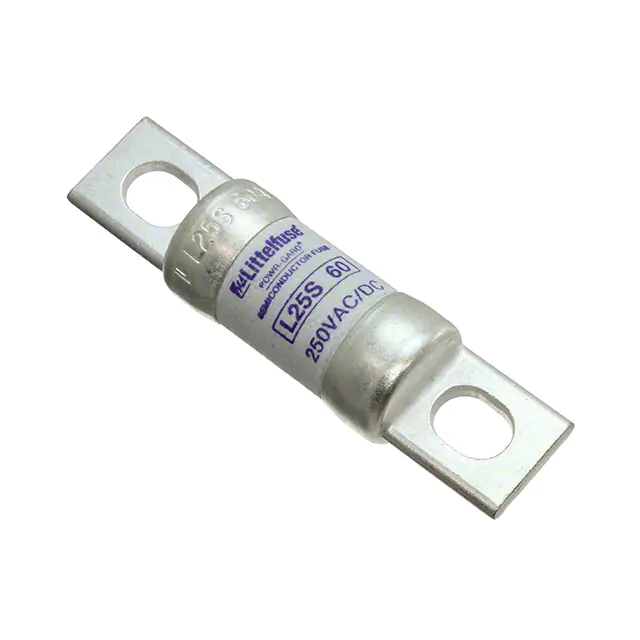

| Part Number | L25S070.V | L25S080.V | L25S090.V |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 70A | 80A | 90A |
| Voltage Rating - AC | 250 V | 250 V | 250 V |
| Voltage Rating - DC | 250 V | 250 V | 250 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - |
| Class | - | - | - |
| Approval Agency | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR |
| Operating Temperature | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) |
