Please send RFQ , we will respond immediately.

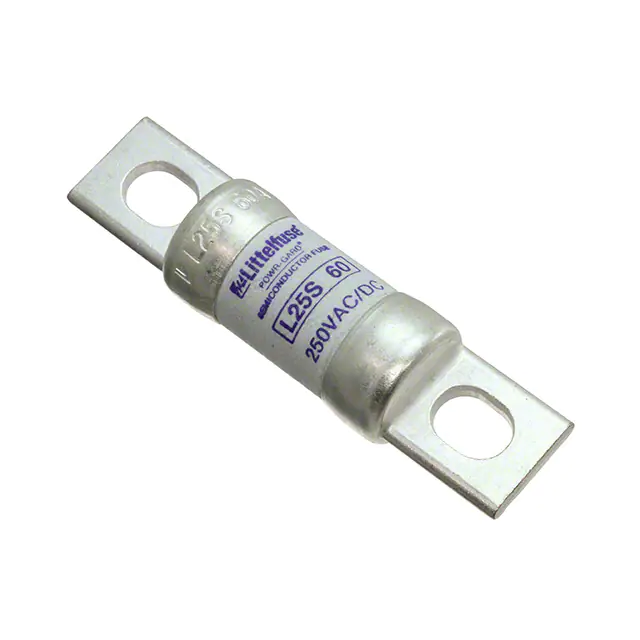

| Part Number | L25S040.T | L25S060.T | L25S045.T | L25S050.T | L15S040.T | L25S010.T | L25S020.T | L25S030.T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 40A | 60A | 45A | 50A | 40A | 10A | 20A | 30A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 250 V | 150 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | 250 V | 250 V | 250 V | 250 V | 150 V | 250 V | 250 V | 250 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - |
| Approval Agency | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR |
| Operating Temperature | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 100kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | 0.811" Dia x 2.000" L (20.60mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) |
