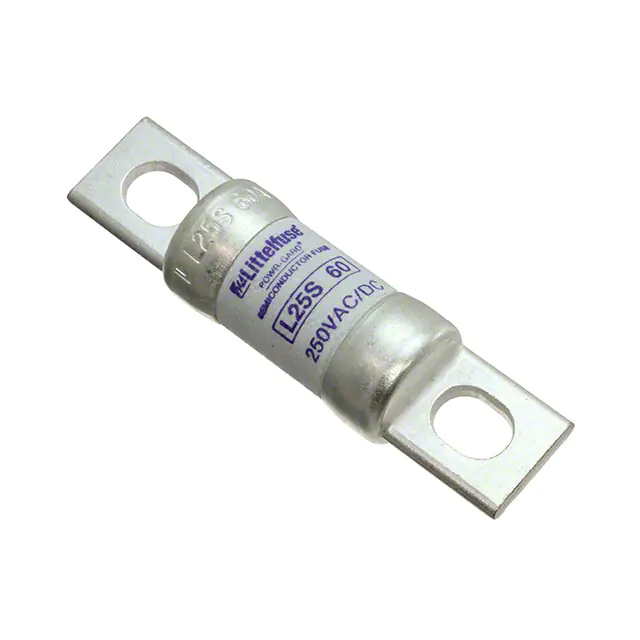

| Part Number | L25S015.T | L25S025.T | L25S045.T | L25S035.T | L15S015.T | L25S005.T | L25S010.T | L25S012.T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Bolt Mount | Bolt Mount | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 15A | 25A | 45A | 35A | 15A | 5A | 10A | 12A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 250 V | 150 V | 250 V | 250 V | 250 V |
| Voltage Rating - DC | 250 V | 250 V | 250 V | 250 V | 150 V | 250 V | 250 V | 250 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - |
| Approval Agency | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR |
| Operating Temperature | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 100kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | 5AG, 10mm x 38mm (Midget) | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) |
