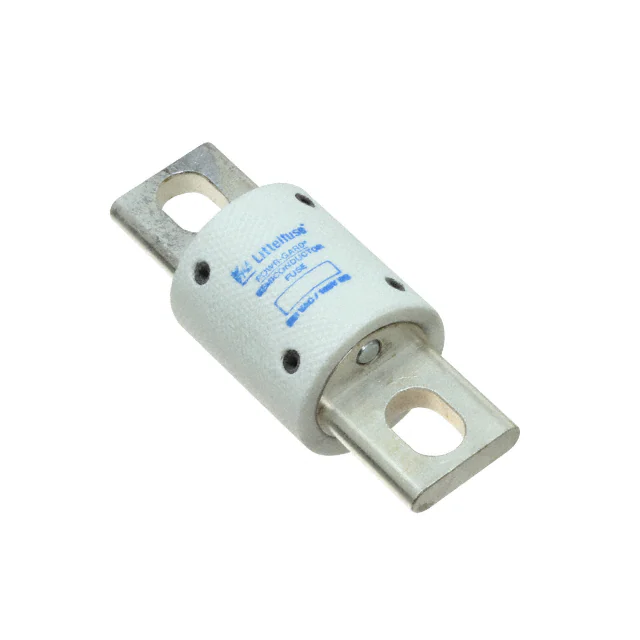

| Part Number | L15S060.TX100 | L15S040.TX100 | L15S050.TX100 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 60A | 40A | 50A |
| Voltage Rating - AC | 150 V | 150 V | 150 V |
| Voltage Rating - DC | 150 V | 150 V | 150 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - |
| Class | - | - | - |
| Approval Agency | CSA, UR | CSA, UR | CSA, UR |
| Operating Temperature | - | - | - |
| Breaking Capacity @ Rated Voltage | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.811" Dia x 2.000" L (20.60mm x 50.80mm) | 0.811" Dia x 2.000" L (20.60mm x 50.80mm) | 0.811" Dia x 2.000" L (20.60mm x 50.80mm) |
