Please send RFQ , we will respond immediately.

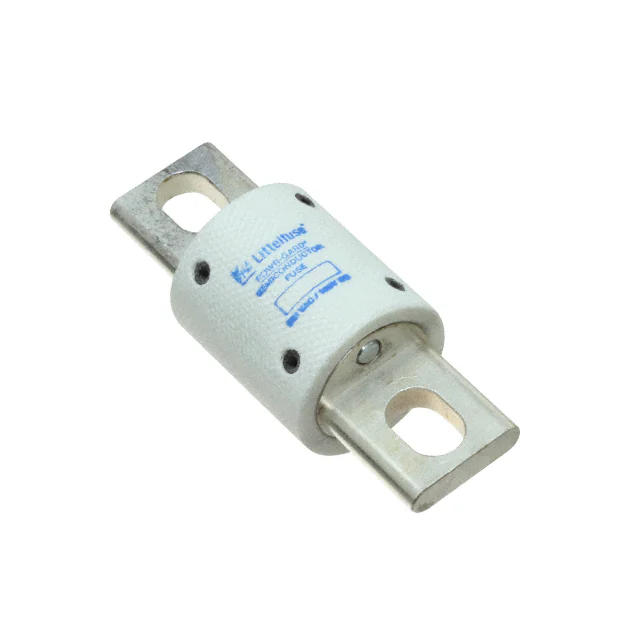

| Part Number | L15S020.T | L15S090.T | L15S025.T | L15S030.T | L25S020.T | L15S040.T | L15S060.T | L15S050.T | L15S080.T | L15S070.T | L15S010.T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Bolt Mount | Holder | Holder | Holder | Holder | Holder | Holder | Bolt Mount | Bolt Mount | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 20A | 90A | 25A | 30A | 20A | 40A | 60A | 50A | 80A | 70A | 10A |
| Voltage Rating - AC | 150 V | 150 V | 150 V | 150 V | 250 V | 150 V | 150 V | 150 V | 150 V | 150 V | 150 V |
| Voltage Rating - DC | 150 V | 100 V | 150 V | 150 V | 250 V | 150 V | 150 V | 150 V | 100 V | 100 V | 150 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors | Semiconductors |
| Features | - | - | - | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - | - | - |
| Approval Agency | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 200kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC | 100kA AC, 20kA DC |
| Package / Case | 5AG, 10mm x 38mm (Midget) | Cylindrical, Blade Terminal (Bolt) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.811" Dia x 2.000" L (20.60mm x 50.80mm) | 0.811" Dia x 2.000" L (20.60mm x 50.80mm) | 0.811" Dia x 2.000" L (20.60mm x 50.80mm) | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) |
