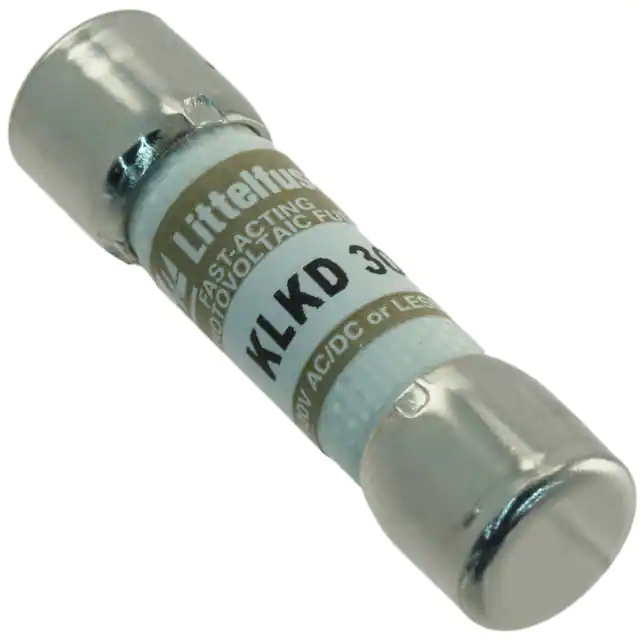

| Part Number | KLKD01.5T | KLKD02.5T | KLKD03.5T | KLKR01.5T | KLKD01.5H |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 1.5A | 2.5A | 3.5A | 1.5A | 1.5A |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | 600 V | 600 V | 600 V | 300 V | 600 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Electrical, Industrial | Solar (Photovoltaic) |
| Features | - | - | - | - | - |
| Class | - | - | - | CC | - |
| Approval Agency | CE, CSA, UL | CE, CSA, UL, VDE | CE, CSA, UL, VDE | CE, CSA, UL | CE, UL |
| Operating Temperature | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 100kA AC, 50kA DC | 200kA AC, 20kA DC | 100kA AC, 50kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | 5AG, 10mm x 38mm (Midget) | Cartridge, Non-Standard |
| Size / Dimension | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) |
