| Part Number | K2502G | K2002G | K2202G | K2402G | K2500G | K2501G |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Voltage - Breakover | 240 ~ 280V | 190 ~ 215V | 205 ~ 230V | 220 ~ 250V | 240 ~ 280V | 240 ~ 280V |
| Current - Breakover | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 160 mA |
| Current - Peak Output | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

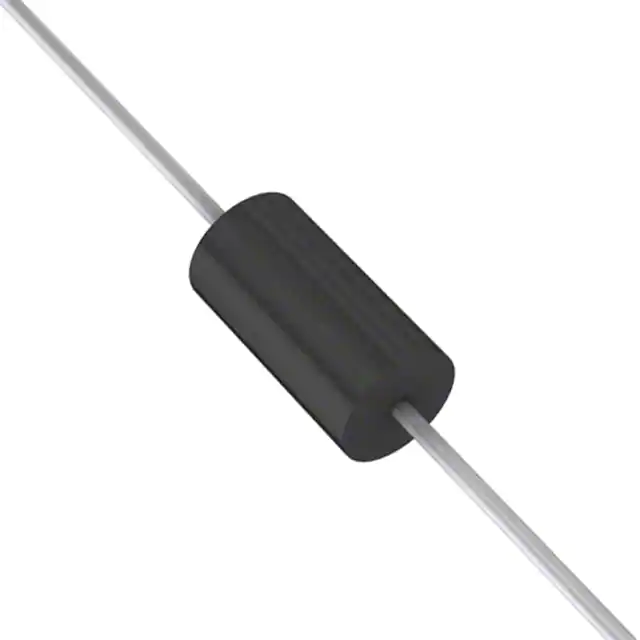

| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 |
