Please send RFQ , we will respond immediately.
| Part Number | K2500F1 | K2500F2 | K2000F1 | K2200F1 | K2400F1 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Breakover | 240 ~ 280V | 240 ~ 280V | 190 ~ 215V | 205 ~ 230V | 220 ~ 250V |
| Current - Breakover | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Current - Peak Output | 1 A | 1 A | 1 A | 1 A | 1 A |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

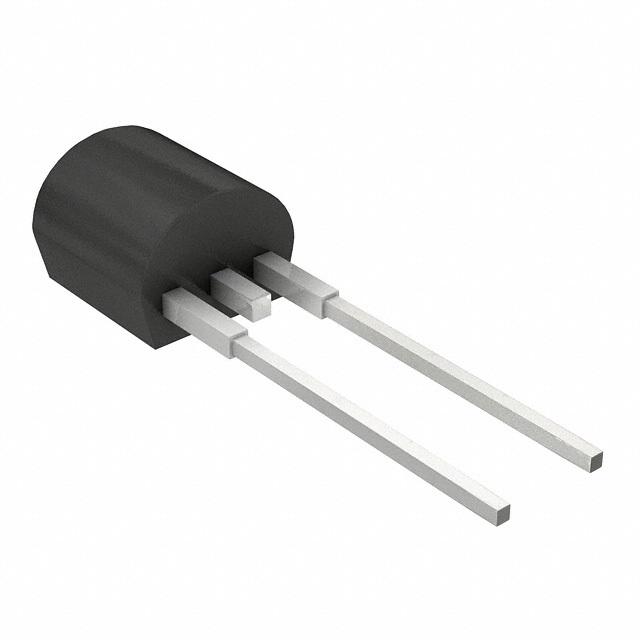

| Package / Case | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) |
| Supplier Device Package | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
