| Part Number | K2400EH70RP2 | K2400EH70RP3 | K2500EH70RP2 | K2000EH70RP2 | K2200EH70RP2 |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Voltage - Breakover | 220 ~ 250V | 220 ~ 250V | 240 ~ 280V | 190 ~ 215V | 205 ~ 230V |
| Current - Breakover | 50 µA | 50 µA | 50 µA | 50 µA | 50 µA |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Current - Peak Output | 1 A | 1 A | 1 A | 1 A | 1 A |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

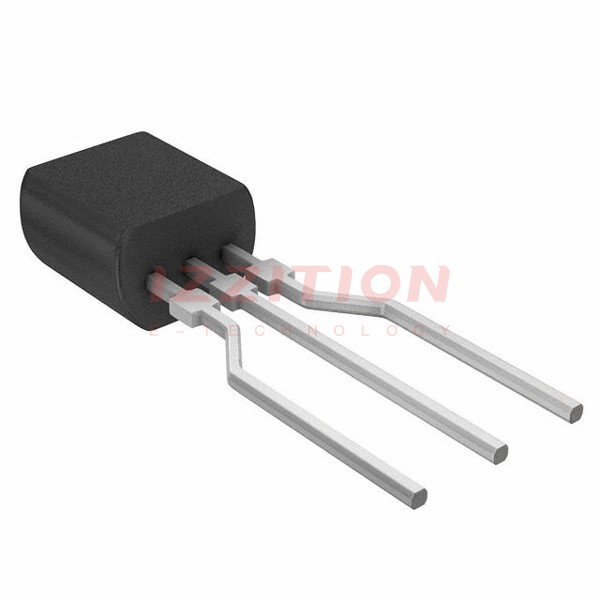

| Package / Case | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) |
| Supplier Device Package | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
