| Part Number | K1500E70AP | K2500E70AP | K1500E70RP | K1200E70AP | K1300E70AP |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Obsolete | Active | Active |
| Voltage - Breakover | 140 ~ 170V | 240 ~ 280V | 140 ~ 170V | 110 ~ 125V | 120 ~ 138V |
| Current - Breakover | 10 µA | 10 µA | 10 µA | 10 µA | 10 µA |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Current - Peak Output | 1 A | 1 A | 1 A | 1 A | 1 A |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |

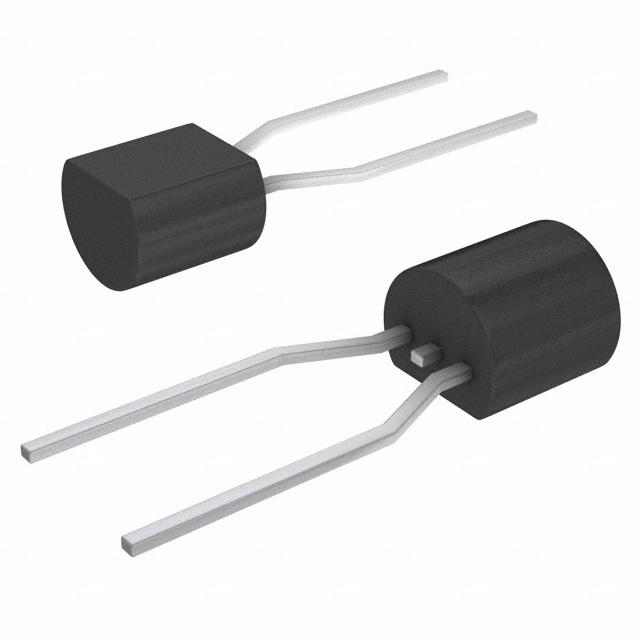

| Package / Case | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) |
| Supplier Device Package | TO-92 | TO-92 | TO-92 | TO-92 | TO-92 |
