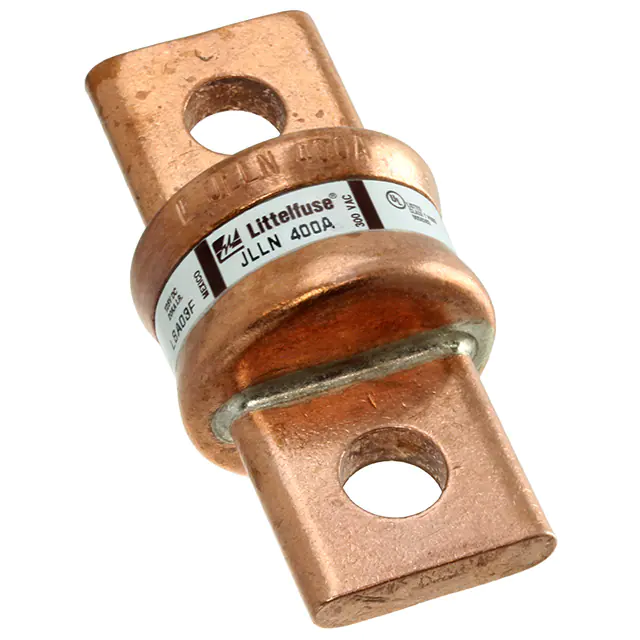

| Part Number | JLLS300.XXP | JLLS350.XXP | JLLS400.XXP | JLLS500.XXP | JLLS600.XXP | JLLS700.XXP | JLLS800.XXP | JLLS900.XXP | JLLN300.XXP | JLLS200.XXP |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 300A | 350A | 400A | 500A | 600A | 700A | 800A | 900A | 300A | 200A |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 300 V | 600 V |
| Voltage Rating - DC | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 125 V | 300 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - | - | - | - |
| Class | T | T | T | T | T | T | T | T | T | T |
| Approval Agency | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, UL, UR | CE, UL, UR | CE, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.594" Dia x 3.626" L (40.50mm x 92.10mm) | 1.594" Dia x 3.626" L (40.50mm x 92.10mm) | 1.594" Dia x 3.626" L (40.50mm x 92.10mm) | 2.063" Dia x 3.984" L (52.40mm x 101.20mm) | 2.063" Dia x 3.984" L (52.40mm x 101.20mm) | 2.500" Dia x 4.327" L (63.50mm x 109.90mm) | 2.500" Dia x 4.327" L (63.50mm x 109.90mm) | 2.626" Dia x 5.272" L (66.70mm x 133.90mm) | 1.311" Dia x 2.752" L (33.30mm x 69.90mm) | 1.079" Dia x 3.252" L (27.40mm x 82.60mm) |
