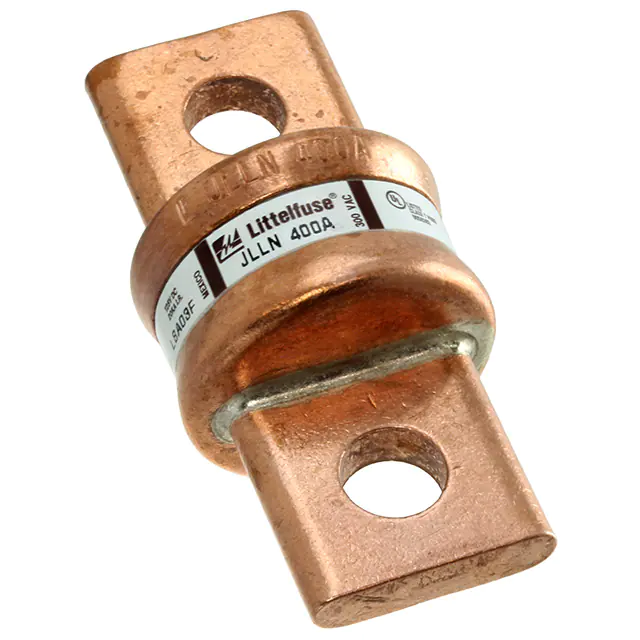

| Part Number | JLLN350.X | JLLN450.X | JLLS350.X | JLLN150.X | JLLN250.X | JLLN300.X |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 350A | 450A | 350A | 150A | 250A | 300A |
| Voltage Rating - AC | 300 V | 300 V | 600 V | 300 V | 300 V | 300 V |
| Voltage Rating - DC | 125 V | 125 V | 300 V | 125 V | 125 V | 125 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - |
| Class | T | T | T | T | T | T |
| Approval Agency | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL | CE, CSA, UL |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | 1.594" Dia x 0.874" L (40.50mm x 22.20mm) | 1.594" Dia x 1.720" L (40.50mm x 43.70mm) | 1.063" Dia x 0.843" L (27.00mm x 21.40mm) | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) |
