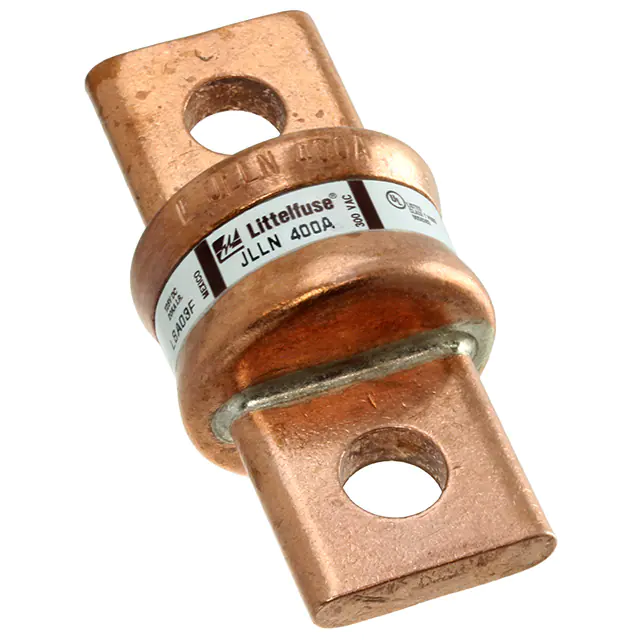

| Part Number | JLLN200.XXP | JLLS200.XXP | JLLN400.XXP | JLLN300.XXP | JLLN250.XXP | JLLN600.XXP | JLLN500.XXP | JLLN700.XXP | JLLN800.XXP |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 200A | 200A | 400A | 300A | 250A | 600A | 500A | 700A | 800A |
| Voltage Rating - AC | 300 V | 600 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Voltage Rating - DC | 125 V | 300 V | 125 V | 125 V | 125 V | 125 V | 125 V | 125 V | 125 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - | - | - |
| Class | T | T | T | T | T | T | T | T | T |
| Approval Agency | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, CSA, UL, UR | CE, UL, UR | CE, UL, UR |
| Operating Temperature | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 1.063" Dia x 2.437" L (27.00mm x 61.90mm) | 1.079" Dia x 3.252" L (27.40mm x 82.60mm) | 1.311" Dia x 2.752" L (33.30mm x 69.90mm) | 1.311" Dia x 2.752" L (33.30mm x 69.90mm) | 1.311" Dia x 2.752" L (33.30mm x 69.90mm) | 1.594" Dia x 3.063" L (40.50mm x 77.80mm) | 1.594" Dia x 3.063" L (40.50mm x 77.80mm) | 2.063" Dia x 3.374" L (52.40mm x 85.70mm) | 2.063" Dia x 3.374" L (52.40mm x 85.70mm) |
