Please send RFQ , we will respond immediately.

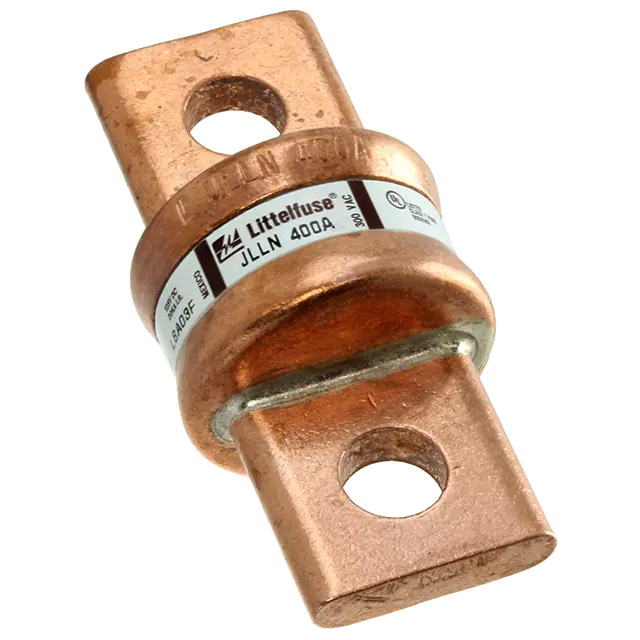

| Part Number | JLLN1100XXP | JLLN1200XXP | JLLS1100XXP | JLLN1000XXP | JLLN110.XXP |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 1.1kA | 1.2kA | 1.1kA | 1kA | 110A |
| Voltage Rating - AC | 300 V | 300 V | 600 V | 300 V | 300 V |
| Voltage Rating - DC | 125 V | 125 V | 300 V | 125 V | 125 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - |
| Class | T | T | T | T | T |
| Approval Agency | CE, UL, UR | CE, UL, UR | CE, UL, UR | CE, UL, UR | CE, CSA, UL, UR |
| Operating Temperature | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) | Cylindrical, Blade Terminal (Bolt) |
| Size / Dimension | 2.500" Dia x 4.000" L (63.50mm x 101.60mm) | 2.500" Dia x 4.000" L (63.50mm x 101.60mm) | 2.626" Dia x 5.272" L (66.70mm x 133.90mm) | 2.500" Dia x 4.000" L (63.50mm x 101.60mm) | 1.063" Dia x 2.437" L (27.00mm x 61.90mm) |
