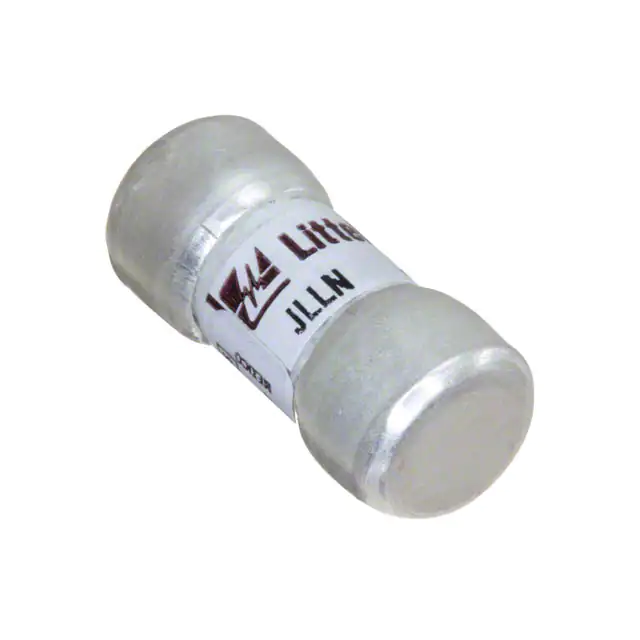

| Part Number | JLLN040.T | JLLN060.T | JLLN050.T | JLLN045.T | JLLN010.T | JLLN020.T | JLLN030.T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 40A | 60A | 50A | 45A | 10A | 20A | 30A |
| Voltage Rating - AC | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Voltage Rating - DC | 160 V | 160 V | 160 V | 160 V | 160 V | 160 V | 160 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - | - |
| Class | T | T | T | T | T | T | T |
| Approval Agency | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UR | CE, CSA, UL | CE, CSA, UL | CE, CSA, UR |
| Operating Temperature | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA | 200kA | 200kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | 0.406" Dia x 0.874" L (10.30mm x 22.20mm) | 0.406" Dia x 0.874" L (10.30mm x 22.20mm) | 0.406" Dia x 0.874" L (10.30mm x 22.20mm) |
