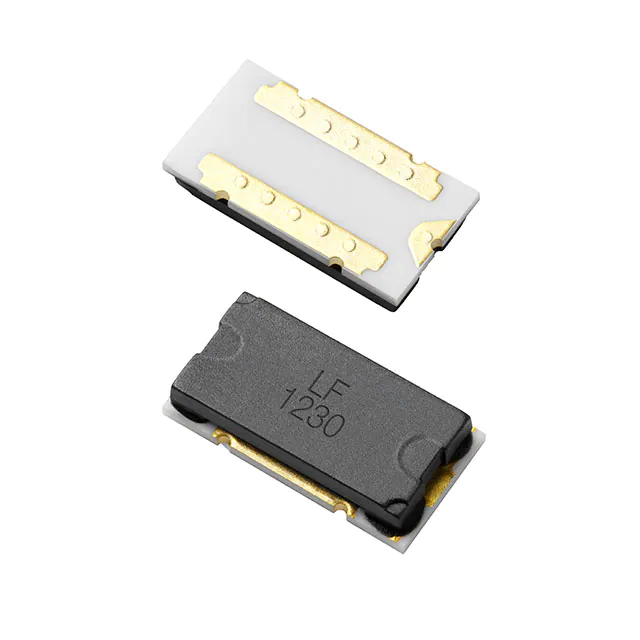

| Part Number | ITV9550L4030MR | ITV9550L5030MR | ITV9550L2030MR | ITV9550L3030MR |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Fuse Type | Board Mount | Board Mount | Board Mount | Board Mount |
| Current Rating (Amps) | 30A | 30A | 30A | 30A |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 62 V | 62 V | 62 V | 62 V |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Battery Protection | Battery Protection | Battery Protection | Battery Protection |
| Features | 28 ~ 46.9V Triggerable | 39.6 ~ 62V Triggerable | 14 ~ 23.4V Triggerable | 20.2 ~ 31.5V Triggerable |
| Class | - | - | - | - |
| Approval Agency | cURus, TUV | cURus, TUV | cURus, TUV | cURus, TUV |
| Operating Temperature | -10°C ~ 65°C | -10°C ~ 65°C | -10°C ~ 65°C | -10°C ~ 65°C |
| Breaking Capacity @ Rated Voltage | 80A | 80A | 80A | 80A |
| Package / Case | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD | Nonstandard SMD |
| Size / Dimension | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) |
