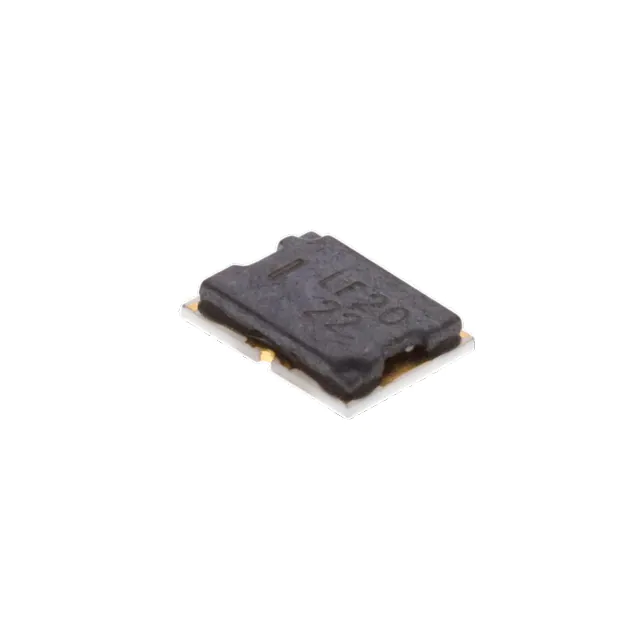

Littelfuse Inc.-ITV4030L2022NR - Fuses Product Specifications and Latest Quotes

Mounting Type:	Surface Mount
Fuse Type:	Board Mount (Cartridge Style Excluded)
Current Rating (Amps):	22 A
Voltage Rating - AC:	-
Voltage Rating - DC:	36 V
Response Time:	Fast Blow
Package / Case:	Nonstandard SMD
Breaking Capacity @ Rated Voltage:	50A
Melting I²t:	-
Approval Agency:	cURus, TUV
Operating Temperature:	-10°C ~ 65°C
Color:	-
Size / Dimension:	0.160" L x 0.120" W x 0.035" H (4.00mm x 3.00mm x 0.90mm)

Littelfuse Inc. ITV4030L2022NR
