HE722A1230
  • Share:

Littelfuse Inc. HE722A1230

Manufacturer No:
HE722A1230
Manufacturer:
Littelfuse Inc.
Package:
Tube
Datasheet:
HE722A1230 Datasheet
ECAD Model:
-
Description:

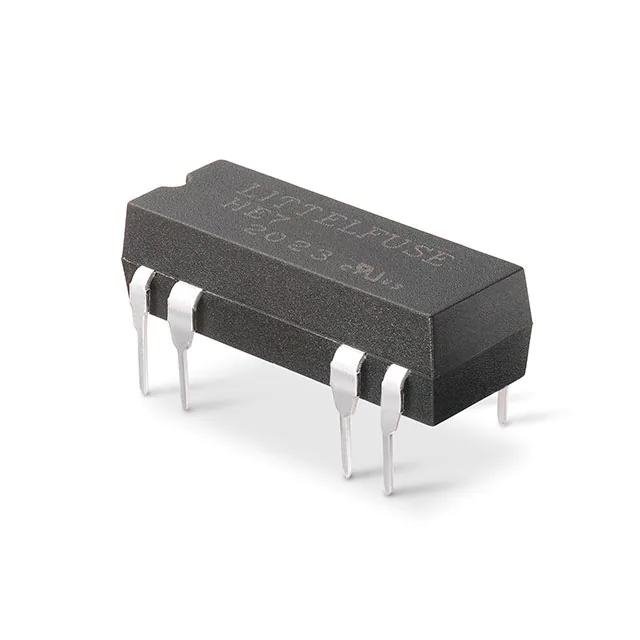

RELAY REED DPST 500MA 12V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:DPST-NO (2 Form A)
Contact Rating (Current):500 mA
Switching Voltage:200VDC - Max
Coil Current:24 mA
Coil Type:Non Latching
Features:Diode, Electrostatic Shield
Termination Style:PC Pin
Seal Rating:-
Must Operate Voltage:8 VDC
Must Release Voltage:1 VDC
Operate Time:1 ms
Release Time:1 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:-
0 Remaining View Similar

In Stock

-
376

Please send RFQ , we will respond immediately.
