HA15-2-17-23
  • Share:

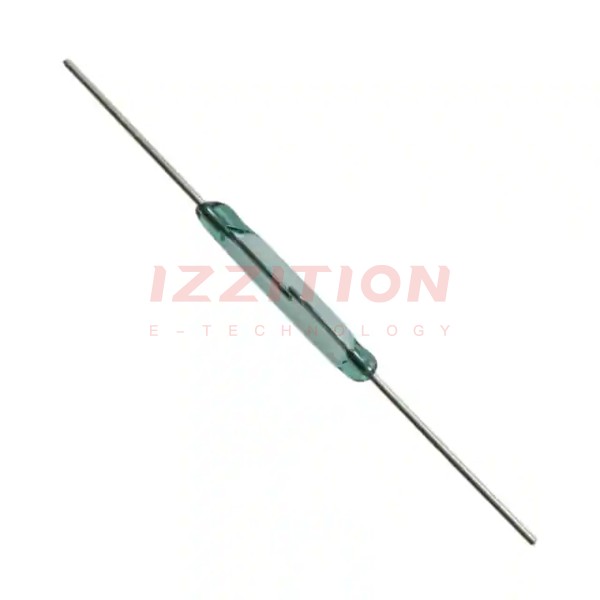

Littelfuse Inc. HA15-2-17-23

Manufacturer No:
HA15-2-17-23
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
HA15-2-17-23 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST-NO 300MA 265V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:17 ~ 23AT
Release Range:-
Current - Switching:300mA (AC), 400mA (DC)
Voltage - Switching AC:265 V
Voltage - Switching DC:200 V
Power - Rated:10W
Operate Time:0.6 ms
Release Time:0.2 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:1.590" (40.39mm)
Size - Body:0.090" Dia x 0.600" L (2.28mm x 15.24mm)
Height Above Board:-
Operating Temperature:-20°C ~ 125°C
Capacitance:0.2 pF
Current - Carry:1.4A (DC)
0 Remaining View Similar

In Stock

$2.16
19

Please send RFQ , we will respond immediately.
