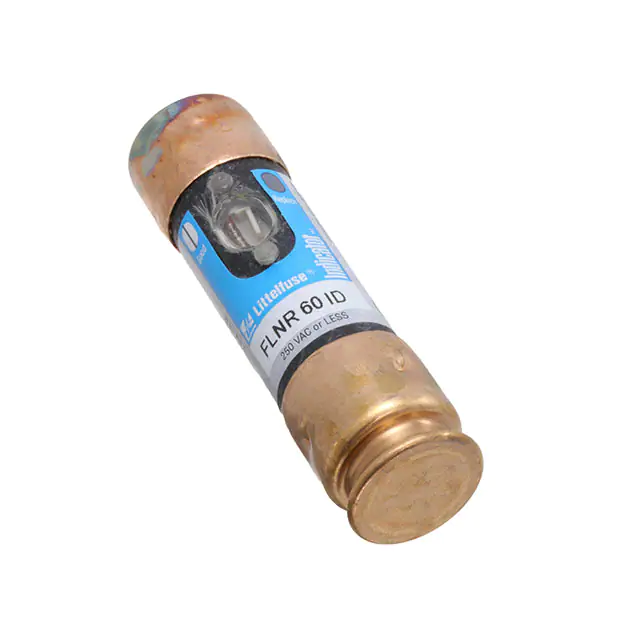

| Part Number | FLNR060.TXID | FLSR060.TXID | FLNR040.TXID |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 60A | 60A | 40A |
| Voltage Rating - AC | 250 V | 600 V | 250 V |
| Voltage Rating - DC | 125 V | 300 V | 125 V |
| Response Time | Slow Blow | Slow Blow | Slow Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | Indicating | Indicating | Indicating |
| Class | RK5 | RK5 | RK5 |
| Approval Agency | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL |
| Operating Temperature | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.811" Dia x 3.000" L (20.60mm x 76.20mm) | 1.063" Dia x 5.500" L (27.00mm x 139.70mm) | 0.811" Dia x 3.000" L (20.60mm x 76.20mm) |
