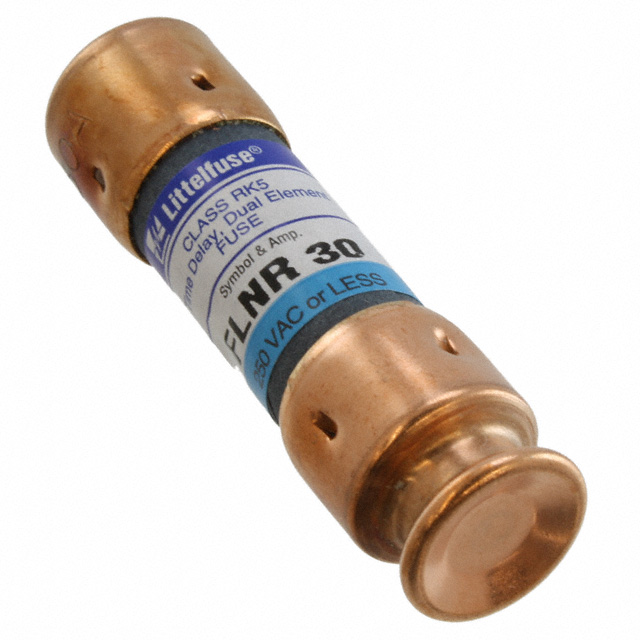

| Part Number | FLNR030.T | FLNR060.T | FLNR050.T | FLNR040.T | FLSR030.T | FLNR020.T |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 30A | 60A | 50A | 40A | 30A | 20A |
| Voltage Rating - AC | 250 V | 250 V | 250 V | 250 V | 600 V | 250 V |
| Voltage Rating - DC | 125 V | 125 V | 125 V | 125 V | 300 V | 125 V |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial | Electrical, Industrial |
| Features | - | - | - | - | - | - |
| Class | RK5 | RK5 | RK5 | RK5 | RK5 | RK5 |
| Approval Agency | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL | CE, CSA, QPL, UL |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | 0.811" Dia x 3.000" L (20.60mm x 76.20mm) | 0.811" Dia x 3.000" L (20.60mm x 76.20mm) | 0.811" Dia x 3.000" L (20.60mm x 76.20mm) | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) |
