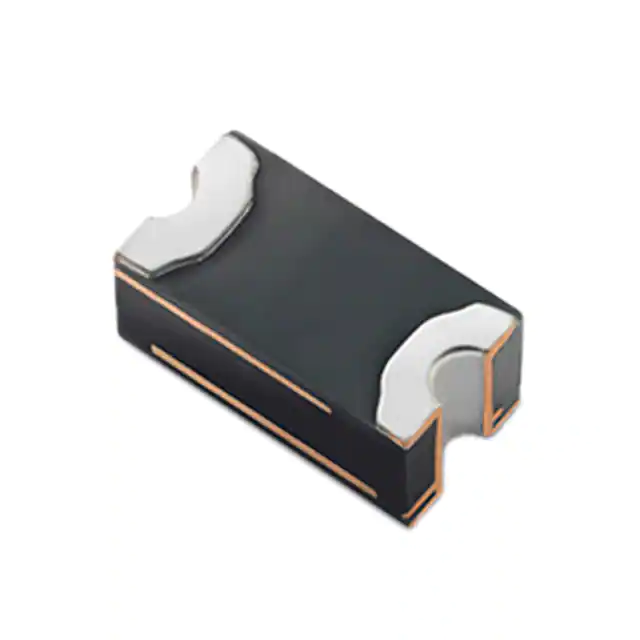

| Part Number | FEMTOASMDC008F-2 | FEMTOSMDC008F-2 | FEMTOASMDC005F-2 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 12V | 12V | 15V |
| Current - Max | 10 A | 40 A | 10 A |
| Current - Hold (Ih) (Max) | 80 mA | 80 mA | 50 mA |
| Current - Trip (It) | 200 mA | 200 mA | 150 mA |
| Time to Trip | 100 ms | 100 ms | 100 ms |
| Resistance - Initial (Ri) (Min) | 2.8 Ohms | 2.8 Ohms | 3.8 Ohms |
| Resistance - Post Trip (R1) (Max) | 14 Ohms | 14 Ohms | 30 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | - | - | - |
| Ratings | PS300, PS400 | - | PS300, PS400 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric), Concave | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.033" (0.85mm) | 0.033" (0.85mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - | - |
