Littelfuse Inc.-DURB1640CT - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io) (per Diode):	8A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	45 ns
Current - Reverse Leakage @ Vr:	10 µA @ 400 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	TO-263 (D²Pak)

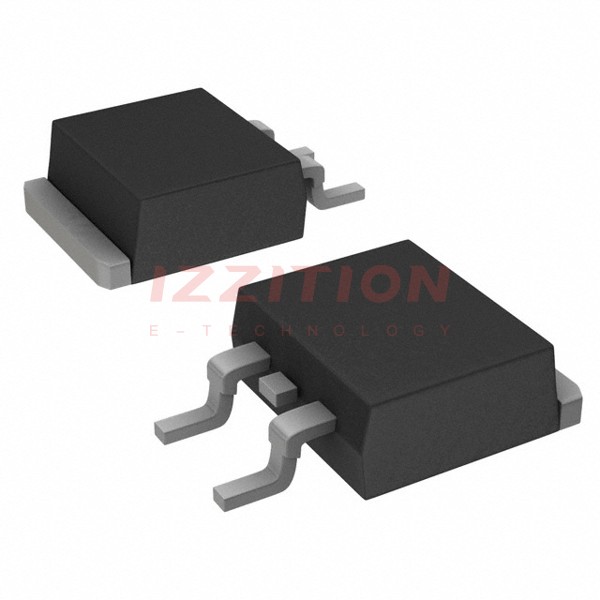

Littelfuse Inc. DURB1640CT
