Littelfuse Inc.-DSTF10200C - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io) (per Diode):	5A
Voltage - Forward (Vf) (Max) @ If:	900 mV @ 5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	10 µA @ 200 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Through Hole

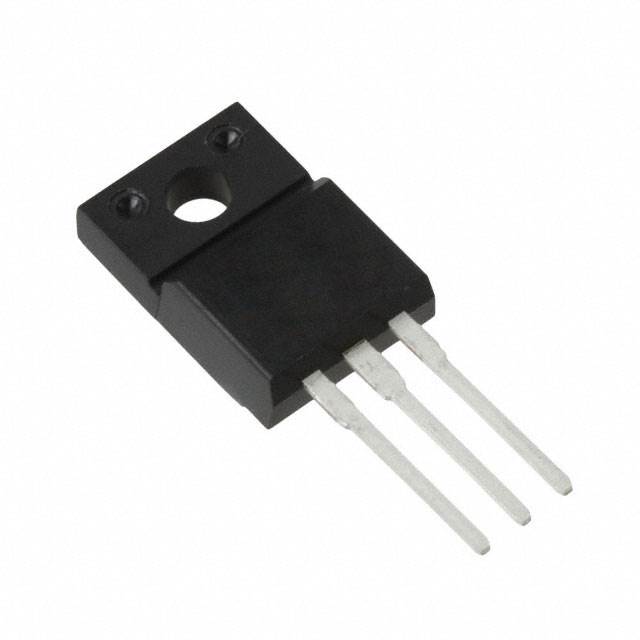

Package / Case:	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package:	ITO-220AB

Littelfuse Inc. DSTF10200C
