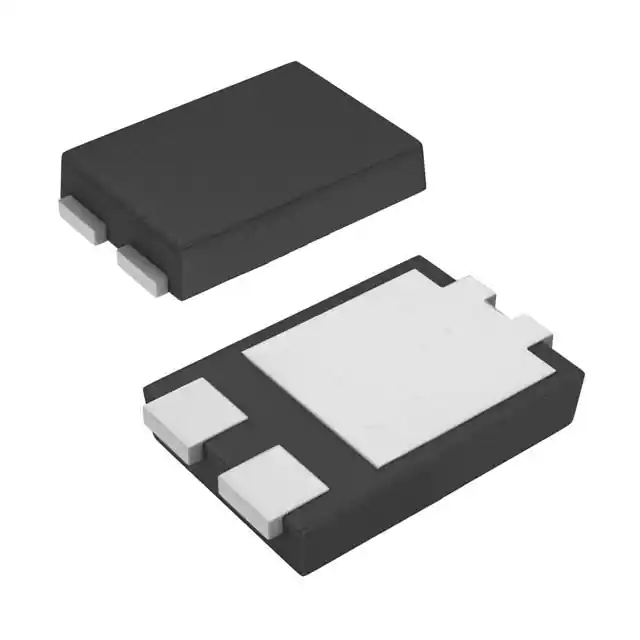

| Part Number | DST8100S-A | DST5100S-A |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V |
| Current - Average Rectified (Io) | 8A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 8 A | 750 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 70 µA @ 100 V | 120 µA @ 100 V |
| Capacitance @ Vr, F | 542pF @ 5V, 1MHz | 245pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277B | TO-277B |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C |
