DRT-DTH-50-65
  • Share:

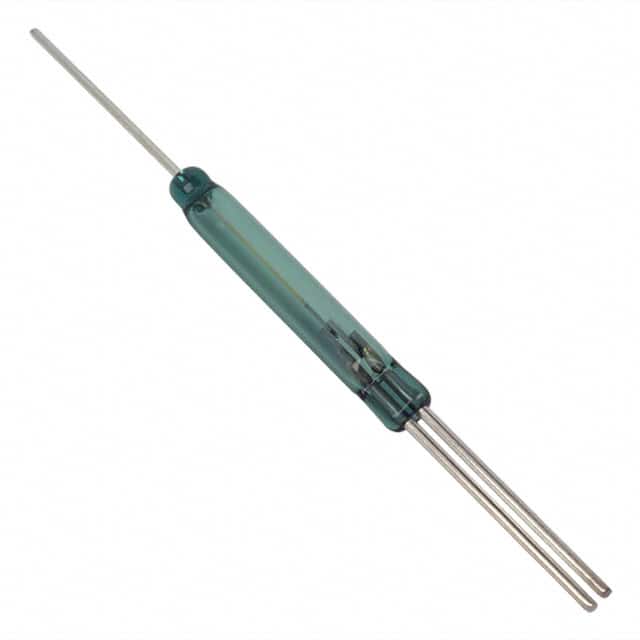

Littelfuse Inc. DRT-DTH-50-65

Manufacturer No:
DRT-DTH-50-65
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
DRT-DTH-50-65 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPDT 1A 350V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPDT
Operate Range:50 ~ 65AT
Release Range:-
Current - Switching:1A (AC), 1.5A (DC)
Voltage - Switching AC:350 V
Voltage - Switching DC:500 V
Power - Rated:50W
Operate Time:5.5 ms
Release Time:8 ms
Mounting Type:Through Hole
Termination Style:Axial
Length - Overall:3.375" (85.73mm)
Size - Body:0.210" Dia x 1.500" L (5.33mm x 38.10mm)
Height Above Board:-
Operating Temperature:-20°C ~ 125°C
Capacitance:2 pF
Current - Carry:2A (DC)
0 Remaining View Similar

In Stock

-
86

Please send RFQ , we will respond immediately.
