DRS-50-62-78
  • Share:

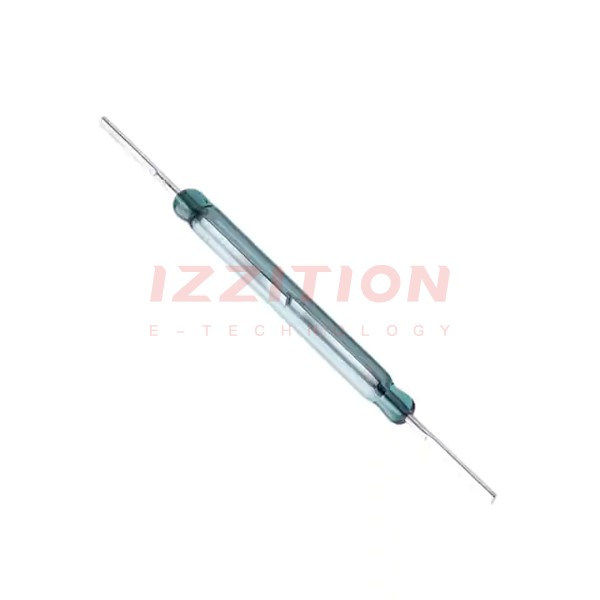

Littelfuse Inc. DRS-50-62-78

Manufacturer No:
DRS-50-62-78
Manufacturer:
Littelfuse Inc.
Package:
Bulk
Datasheet:
DRS-50-62-78 Datasheet
ECAD Model:
-
Description:
SWITCH REED SPST
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Glass Body Reed
Circuit:SPST-NO
Operate Range:62 ~ 78AT
Release Range:-
Current - Switching:2.1A (AC), 3A (DC)
Voltage - Switching AC:280 V
Voltage - Switching DC:400 V
Power - Rated:100W
Operate Time:4.5 ms
Release Time:2.5 ms
Mounting Type:Surface Mount
Termination Style:Axial, Flat
Length - Overall:3.250" (82.55mm)
Size - Body:0.207" Dia x 2.000" L (5.25mm x 50.80mm)
Height Above Board:-
Operating Temperature:-40°C ~ 125°C
Capacitance:0.6 pF
Current - Carry:6A (DC)
0 Remaining View Similar

In Stock

-
596

Please send RFQ , we will respond immediately.
