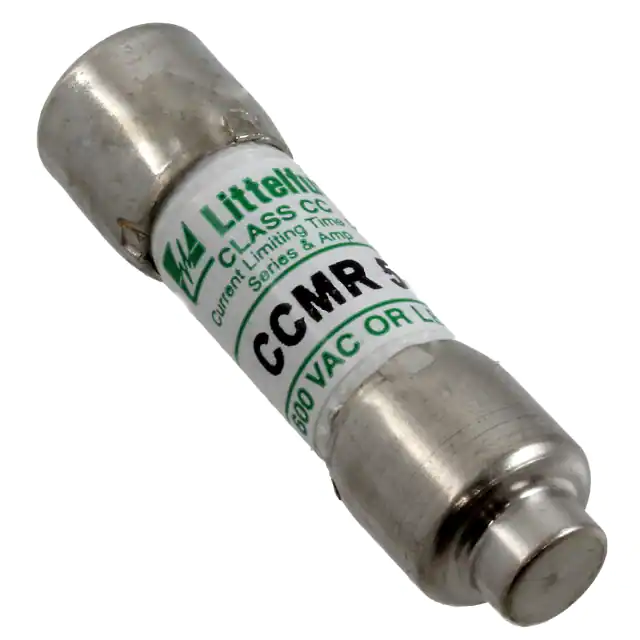

| Part Number | CCMR012.T | CCMR015.T | CCMR002.T | CCMR010.T |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Mounting Type | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 12A | 15A | 2A | 10A |
| Voltage Rating - AC | 600 V | 600 V | 600 V | 600 V |
| Voltage Rating - DC | 500 V | 500 V | 250 V | 250 V |
| Response Time | Slow Blow | Slow Blow | Slow Blow | Slow Blow |
| Applications | Motor Protection | Motor Protection | Motor Protection | Motor Protection |
| Features | - | - | - | - |
| Class | CC | CC | CC | CC |
| Approval Agency | CE, UL | CE, UL | CE, CSA, UL | CE, UL |
| Operating Temperature | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 300kA AC, 20kA DC | 200kA AC, 20kA DC | 300kA AC, 20kA DC | 200kA AC, 20kA DC |
| Package / Case | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) |
