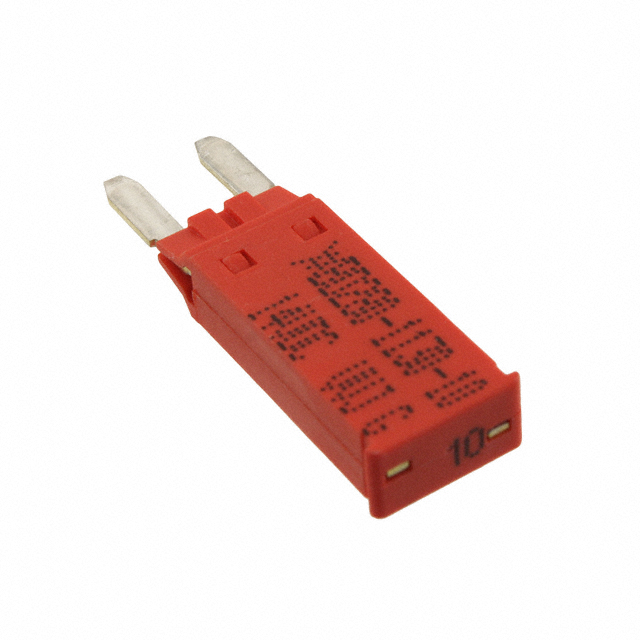

| Part Number | BD280-1130-10/16 | BD280-1130-15/16 | BD280-1130-20/16 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 14V | 14V | 14V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 8 A | 12 A | 16 A |
| Current - Trip (It) | 13 A | 20 A | 26 A |
| Time to Trip | 8 s | 8 s | 10 s |
| Resistance - Initial (Ri) (Min) | 9.5 Ohms | 5 mOhms | 2.8 Ohms |
| Resistance - Post Trip (R1) (Max) | 18.5 Ohms | 7 mOhms | 6.4 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Mounting Type | Holder | Holder | Holder |
| Package / Case | Blade Type | Blade Type | Blade Type |
| Size / Dimension | 1.193" L x 0.433" W (30.30mm x 11.00mm) | 1.193" L x 0.433" W (30.30mm x 11.00mm) | 1.193" L x 0.433" W (30.30mm x 11.00mm) |
| Height - Seated (Max) | 0.262" (6.65mm) | 0.262" (6.65mm) | 0.262" (6.65mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | - | - | - |
