Please send RFQ , we will respond immediately.

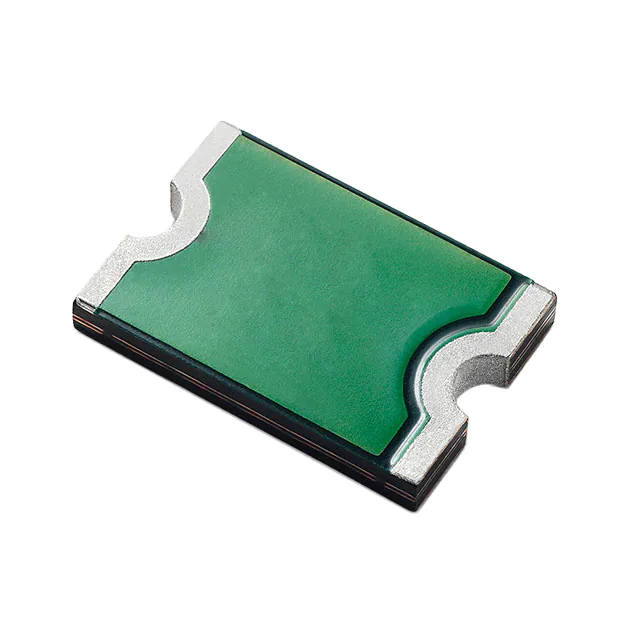

| Part Number | ASMDC030F-2 | ASMDC050F-2 | ASMD030F-2 |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 60V | 60V | 60V |
| Current - Max | 10 A | 10 A | 10 A |
| Current - Hold (Ih) (Max) | 300 mA | 500 mA | 230 mA |
| Current - Trip (It) | 600 mA | 1 A | 590 mA |
| Time to Trip | 3 s | 4 s | 12 s |
| Resistance - Initial (Ri) (Min) | 300 mOhms | 150 mOhms | 980 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.4 Ohms | 1.2 Ohms | 4.8 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | - | - | -40°C ~ 85°C |
| Ratings | PS300, PS400 | PS300, PS400 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD | 2-SMD |
| Size / Dimension | 0.295" L x 0.201" W (7.50mm x 5.10mm) | 0.295" L x 0.201" W (7.50mm x 5.10mm) | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.125" (3.18mm) |
| Lead Spacing | - | - | - |
