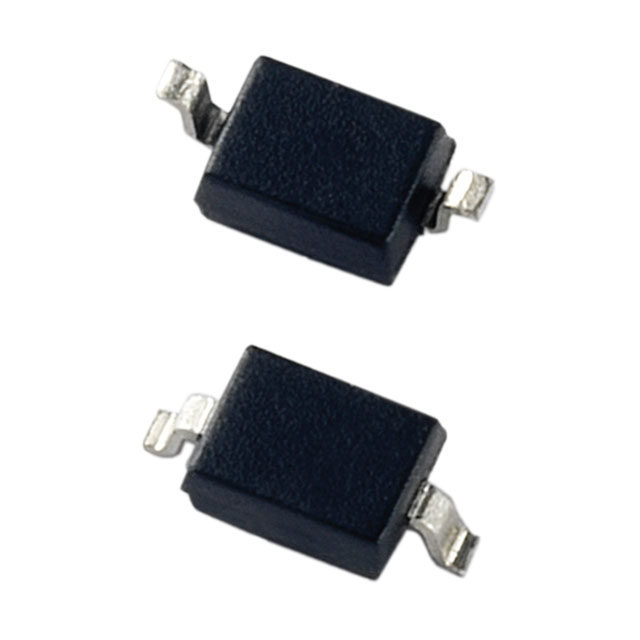

| Part Number | AQ05-01FTG | AQ05C-01FTG | AQ15-01FTG |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 |
| Bidirectional Channels | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5V (Max) | 15V (Max) |
| Voltage - Breakdown (Min) | - | - | - |
| Voltage - Clamping (Max) @ Ipp | 13V | 14.5V | 30V |
| Current - Peak Pulse (10/1000µs) | 30A (8/20µs) | 30A (8/20µs) | 12A (8/20µs) |
| Power - Peak Pulse | 450W | 450W | 450W |
| Power Line Protection | No | No | No |
| Applications | Automotive, CAN | Automotive, CAN | Automotive, CAN |
| Capacitance @ Frequency | 350pF @ 1MHz (Max) | 200pF @ 1MHz (Max) | 100pF @ 1MHz (Max) |
| Operating Temperature | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 | SOD-323 | SOD-323 |
